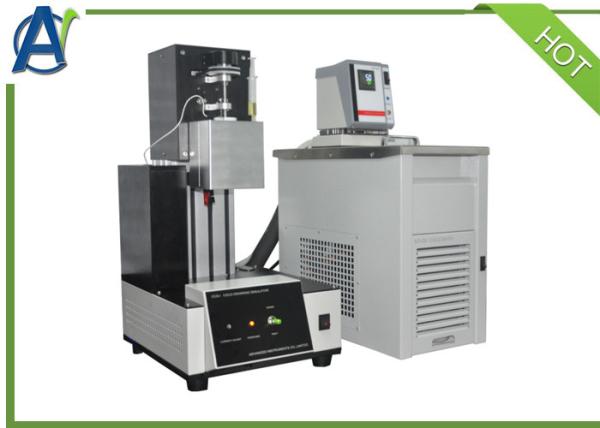

ASTM D5293 Apparent Viscosity Test Instrument Using Cold Cranking Simulator

Brand Name : AI

Model Number : CCS-I

Certification : ISO

Place of Origin : China

MOQ : 1 set Apparent Viscosity Test Instrument

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 20 days

Packaging Details : Apparent Viscosity Test Instrument packed in Hardboard

Standards : GB/T6538, ASTM D2602,ASTM D5293

Test method : CCS

Temperature Controlling Range : -5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC

Display : LCD

Power Supply : AC220V, 50Hz

Measuring range : 1500~15000CP

Warranty : 1 Year

Operation : Automatic

Contact Now

Apparent Viscosity of Engine Oils Test Instrument Using CCS

Introduction:

Cold Cranking Simulator instrument is used to measure the apparent viscosity of engine oil at low temperature (- 35 ºC ~ - 5 ºC).

Method summary: Drive a rotor closely matched with the stator by a DC motor, and fill the gap between the rotor and the stator with samples.
The temperature is controlled by the temperature control system, and the motor speed is corrected with standard oil to make it a function of viscosity. Determine the sample viscosity by measuring the rotation speed.

The rotor and stator system of the Cold Cranking Simulator uses a thermoelectric temperature control system. Compared with the previous model, the temperature control is improved, the preheating time is reduced, and the measurement accuracy is improved. The compact structure is easy to install and use.

Features:

► Automatic detect rotation speed,control current,and reduce error;
► Refrigerated by semi-conductor;
► The Cold Cranking Simulator adopts imported motor,accuracy is high;
► LCD displays all working status;
► It can connect printer to print out result;
► Result can be calculated automatically after calibrating with standard oil;
► Micro-computer controlling,Windows operation system,complete English interface;
► Upgraded rotor,low rotor torque test status,high repeatability;
► The Cold Cranking Simulator can automatically generate calibration curve,directly display measured result of viscosity;
► All test procedures are controlled automatically,when test is over,it can stop and raise temperature automatically.
► The Apparent Viscosity Test Instrument recommends refrigeration tempeature automatically
► Rotary encoder detects rotation speed;
► Measuring range:1500~25000CP；
► This Apparent Viscosity Test Instrument can edit 10 types standard oil results;
► This apparent viscosty apparatus is equipped with low temperature cooling device.

Specifications:

Applicated standard	GB/T6538, ASTM D2602,ASTM D5293
Refrigeration method	Semi-conductor
Circulatioini method	multifunctional plastic steel pump
Temp.controlling method	Digital PID temperature controller
Detection method	Automatic sampling,automatic cleaning,automatic test
Data processing	Automatic saving
Temp.controlling range	-5ºC -10ºC -15ºC -20ºC -25ºC -30ºC -35ºC (optional -40ºC)
Power supply	AC220 V 50Hz
Temperature controlling accuracy	±0.02ºC
Working units	12
